JACC64 512K
C64 512K ROM Cartridge

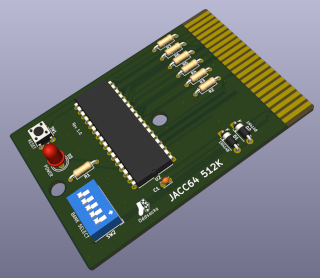

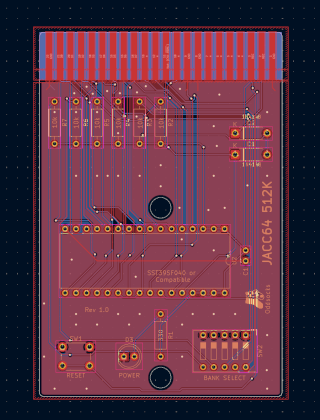

JACC64 512K - Just Another Commodore Cartridge 512K. A ROM cartridge for the Commodore 64 which takes an EEPROM and holds 32 x 16K ROM images
Features
- 32 x 16K ROMs (selectable by DIP switch)
- Power LED
- Reset Switch
BOM (THT)
- 1 x SST39SF040 EEPROM (or compatible)
- 1 x wide 32pin DIP socket (optional)
- 1 x 5MM LED
- 6 x 10 KOhm resistor
- 1 x 330 Ohm resistor
- 2 x 1N4148 diodes
- 1 x 100nF ceramic capacitor
- 1 x 6mm tactile switch
- 1 x 5-Position DIP switch
